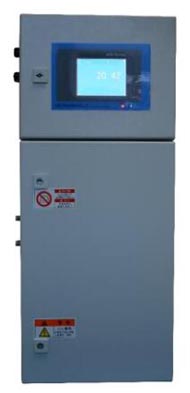

The TA-5 Analyzer is an on-line sequential sampling analyzer that
uses Delta-Phase patented titration approach involving multiple point
pH measurements to yield timely and accurate analyses. The analyzers
may be configured to perform VFA (volatile fatty acids) and Total Alkalinity
analysis by using only two reagents.
Anaerobic digestion treatment of municipal and industrial waste water has gained considerable importance in the last few years. In terms of process stability, anaerobic digestion still lags behind aerobic biological treatment or physic-chemical processes. VFA (volatile fatty acids also called short-chain fatty acid) and Alkalinity are both very important parameters to assess the anaerobic digestion stability. The main alkalinity components in a digester are bicarbonate and VFA which are consumed and produced through the process steps. Bicarbonate buffers the system in the optimum pH range for the process to run efficiently. VFA buffers the system at low pH that is inhibitory to the biomass matrix in the digester.
- VFA (volatile fatty acids) and Alkalinity Analyzing
*Measuring the substrate concentration by easy analytical devices
*User Friendly Menu Structure
*Touch-screen Interface
*Epoxy Powder Coated Rugged Cabinet
*Two separate Compartments (Electronics. Hydraulics)
*Low Maintenance
*Affordable solution and Reagent usage
-
Selection Guide
