RG7 measures the level by using a so-called Frequency Modulated Continuous Wave (FMCW).

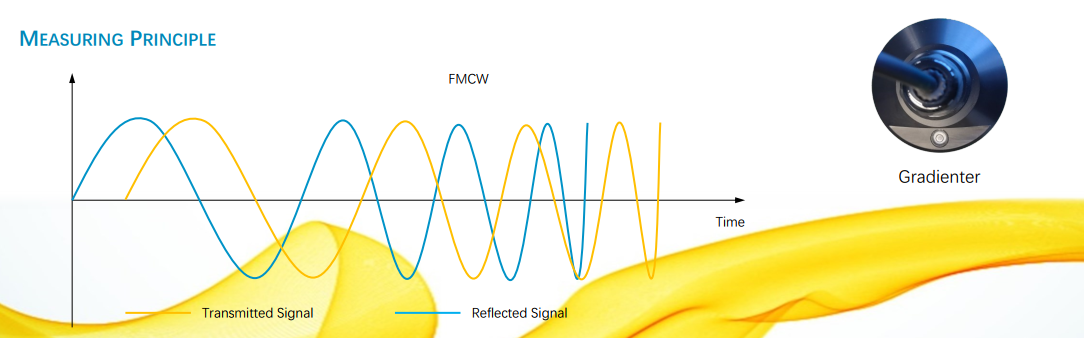

The system transmits a continuous wave at a certain frequency of 120 GHz, which is then modulated over a period of time T.
This gives the transmitted signal a “time stamp".
The signal travels then to the target level and part of it is reflected back. The radar will detect the reflected signal and compare it to the original one by mixing them and processing the resulting signal.
By comparing the reflected wave with the original signal at any given moment of time, a frequency shift Δf can be observed.
This shift allows determining the range from the sensor head to the surface of target level.
Since the radar wave are minimally affected by the tank content and its environment like temperature and pressure, radar measurement is proven to be the most reliable gauging method in most applications.
Additionally, because the radar sensor is not physically contacting with the measured object, the sensor is almost maintenance free.
-
APPLICATIONS
Features a 120G Hz Frequency Modulated Continuous Wave system, RG7 high precision level sensor is very capable of measuring both calm surface liquids such as storage and buffer tanks as well as very uneven, disturbed surface liquids such as reactor tanks.
It is applicable over a wide range of industrial applications including:
※ Water reservoir/Hydraulic power station
※ Chemical and petrochemical
※ Pharmacy
※ Food and beverage
※ Process in waterworks
※ Waste water treatment plant

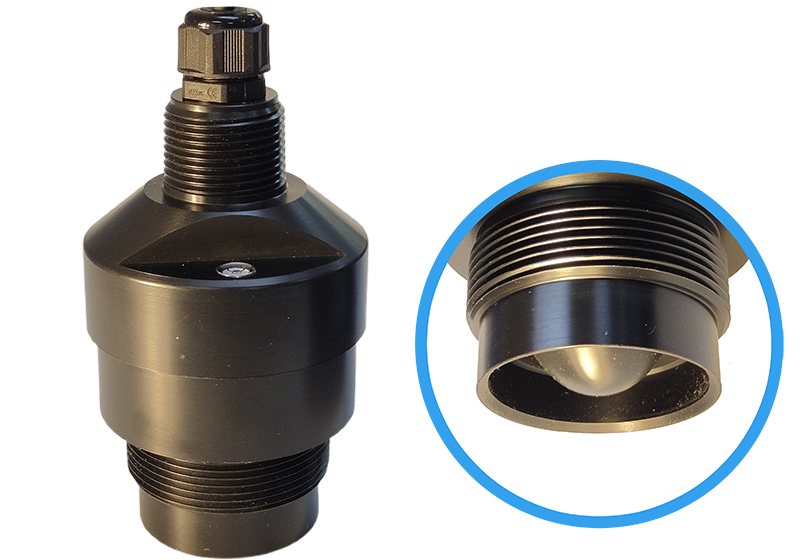

FEATURES & BENEFITS
※ 120GHz high frequency FMCW radar system
※ Can be used even for low permittivity medium
※ Gradienter on top for easy horizontal installation
※ Non-contact measuring method
※ High accuracy: ±1mm
※ Small antenna and Short “dead” zone

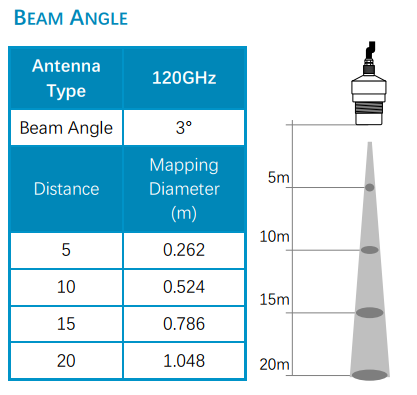

※ Sharp beam cone angle for improved energy concentration.
Well-suited for narrow spaces with minimal interferences※ Completely sealed HTPE sensor, resistant to corrosive environment
※ Less affected from foam, steam, dust and other potential interferences
※ RS485/Modbus Protocol allow up to 300-meter long communication between the Sensor and Controllers
※ Built-in Bluetooth module enables wireless connection to standard operating equipment.
Like Smartphone/Tablet running iOS or Android or PC
-
RG7 Radar Level Sensor
- Remote Sensor without Display
- Liquid
S Granular Solid Contact factory for other applications
-C10 10’ Cable
-C30 30’ Cable Contact factory for more leng
RG7 - - - -C30 (example)
