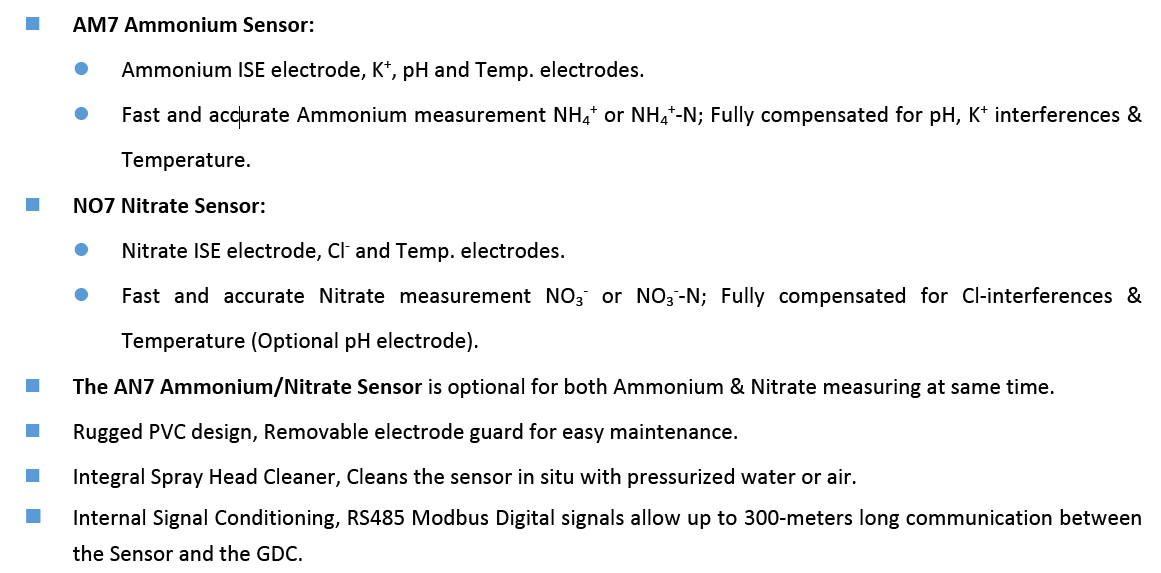

The AM7 Ammonium Sensor measures the concentration of dissolved ammonium nitrogen (NH4+-N) in water. The sensor uses three electrodes to determine the NH4+-N concentration, an Ammonium Ion Electrode, a Potassium Ion Electrode and a pH Electrode. It is designed for use in all kinds of water. Typical applications include monitoring environmental waters, lakes, streams, and wells as well as wastewater treatment in aeration basins and effluent.
The NO7 Nitrate Sensor measures the concentration of dissolved nitrate nitrogen (NO3--N) in water. The sensor uses two electrodes to determine the NO3--N concentration, a Nitrate Ion Electrode and a Chloride Ion Electrode. It is designed for use in all kinds of water. Typical applications include monitoring environmental waters, lakes, streams and wells as well as wastewater treatment in aeration basins and effluent.
-
Selection Guide
Specification
Principle
Ion selective electrodes method
Measurement Range
Ammonium: 0.02 to 20.00 ppm, 100 / 500 / 1000 ppm
Nitrate: 0.02 to 20.00 ppm, 100 / 500 / 1000 ppm
pH: 0 to 14; Temp.: 0 to 100 °C (32 °F to 212 °F)
Accuracy
±3% of reading, depends on Calibration
Revolution
0.01 ppm
Repeatable
2%
Response Time
T90 < 1 minute
Flow Rate
Max. 3.0m/s
Automatic Compensation
Temp.: 0 to 100 °C
Optional: pH, K+, Cl-
Max Pressure
0.5 bar
Operating Temp.
0 to 50 °C
Process Connection
1.5” NPT
Material
SS316, PVDF, PTFE, Glass
Digital Interface
RS485, Modbus RTU
Power Supply
24VDC by GDC, Max. 1W
Auto-Cleaning
3 to 5 bar air or water
IP Rate
IP68
