- The Alpha 3000 Transit-Time flowmeter combines digital signal processing (DSP) with correlation detection methods.
The Alpha 3000 is designed to work on clean and dirty fluids ranging from distilled products to multi-phase crude oil and water mixtures. Difficult applications include oil production, cryogenic and custody transfer. Available in single channel or multi-channel, this Transit-Time flow measurement instrument is configurable as a clamp-on or insertion model. When combined with Mass Flow Computer temperature or density compensations with RS485 communications can be realized.
-
* No moving parts to wear out.
* The non-intrusive clamp-on transducer can be installed without flow interruption to insure leak free measurements with zero pressure drop.
* Insertion transducer can be installed with hot-tap alignment or spool piece for custody transfer applications.
* High accuracy
* Optional:
Dual Channel measuring system;
Spool Piece or flow tube fabrication.
Insertion sensor.
-

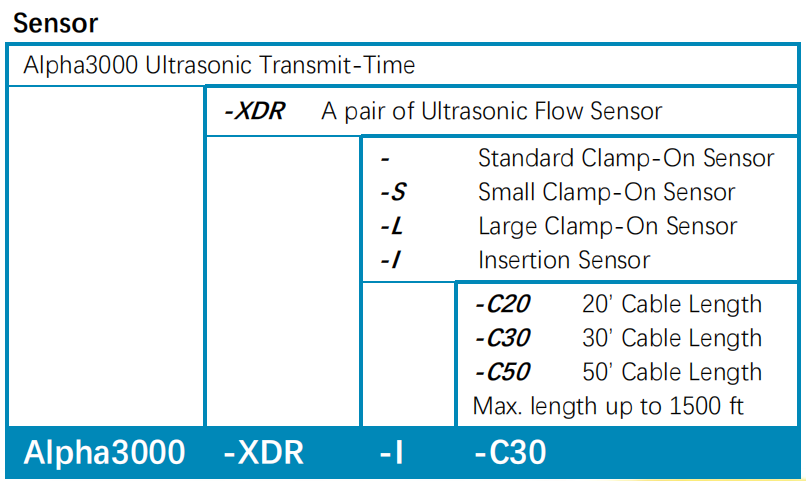

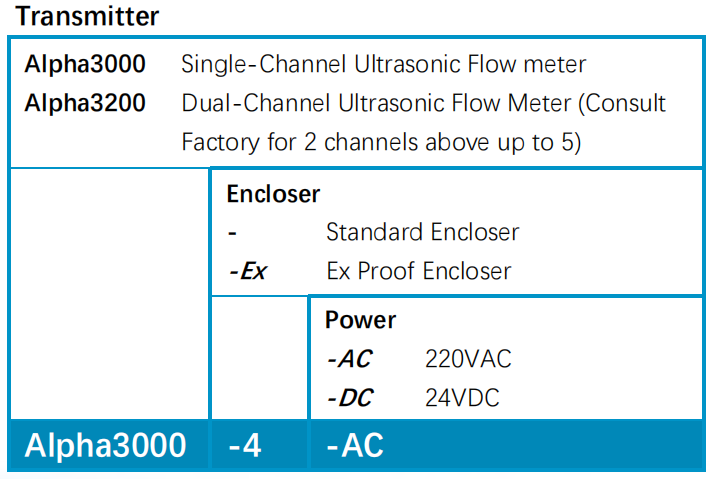

Selection Guide
