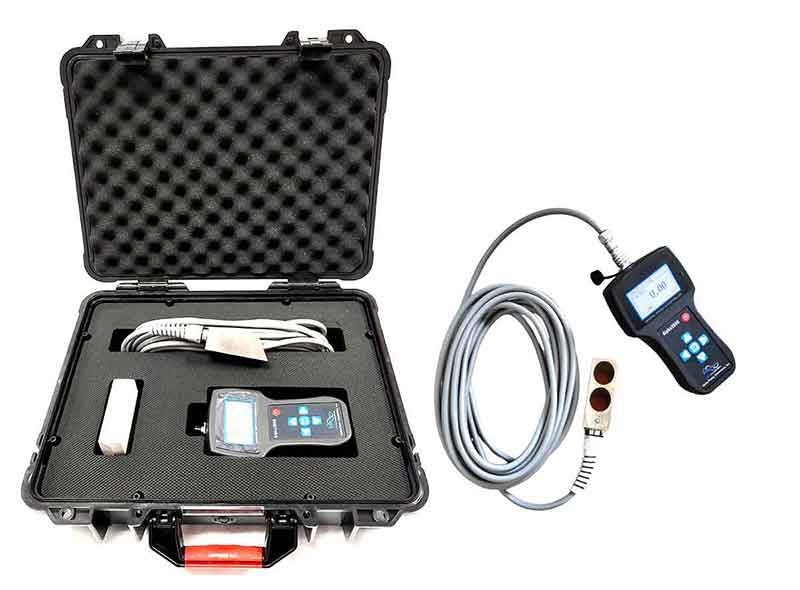

The Alpha2600 is a portable ultrasonic Doppler Flowmeter consisting of a transmitter,
a clamp-on transmit/receive sensor, mounting hardware and a carrying case.
The transmitter’s electronics is specifically designed to analyze, separate, and reject noise frequencies.
The ultrasonic sound waves are coupled from the sensor, through the pipe walls,
and reflected off the particles in the fluid back through the pipe walls to the sensor.
-
■ Easy to set up in minutes.
■ The non-intrusive clamp-on transducer can be installed without flow
■ interruption to ensure leak free measurements with zero pressure drop.
■ Stable readings are assured with a design immune to vibrations and temperature changes.
■ Unique ultrasonic sensors & circuitry using Doppler technique.
■ Typical field performance : ±0.5% for repeatability and up to ±2% accuracy of velocity depending on fluid conditions.TYPICAL APPLICATIONS
■ Water, Waste water
■ Sea water, River water
■ brine solutions, slurries
■ And most applications with liquids having at least 50 ppm and 30 micron size suspended particles .
-
Selection Guide
